Efficient Cleaning Of Electronics Parts
Granbo electronics ultrasonic cleaner
Granbo electronics ultrasonic cleaner

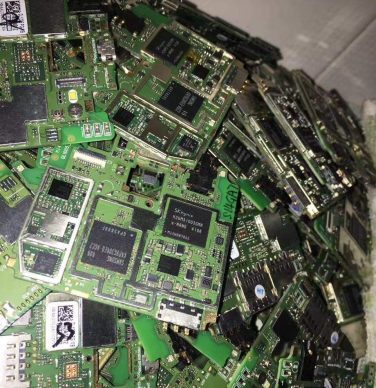

Circuit board is also known as: ceramic circuit board, circuit board, PCB board, etc. Circuit board is an essential accessory in modern electronic equipment, generally used in large machinery or personal computers, communication base stations, cell phones, household appliances, electronic toys will be used circuit boards. Circuit board small size, complex structure, and the surface and gaps where many rosin, flux, dust, grease and other stains remain, therefore, the cleaning of the circuit board must also be used to clean the professional way, the current more popular cleaning method is the ultrasonic cleaning machine, ultrasonic cleaning machine can clean the circuit board?
Traditional cleaning methods use to soft brush cleaning or soak cleaning, but this cleaning method is not only laborious, but also easy to damage the circuit board, the use of ultrasonic cleaning machine cleaning circuit board is a very good method, it is mainly the use of the principle of ultrasound, the electrical energy into mechanical vibration, generating a large number of tiny bubbles, tiny bubbles quickly expand and then suddenly closed, in the bubble expansion and closure of the process instantly Produce shock waves, this is called the cavitation effect, the use of tiny bubble blasting force, constantly impacting the external surface of the object, so as to achieve the purpose of stripping off the dirt.

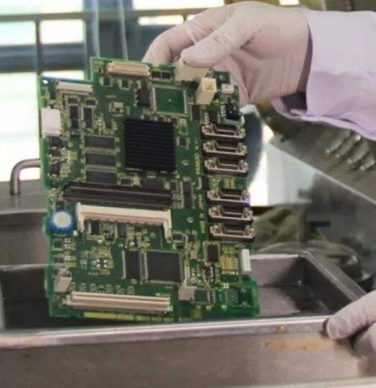

Cleaning circuit board pay attention to the correct choice of ultrasonic power, cleaning do not over-regulate the ultrasonic power, its power and the volume of the container and the number of circuit boards need to be cleaned proportional to the choice of how much ultrasound to be based on the number of circuit boards to be cleaned, generally only suitable for large quantities of circuit boards, cleaning circuit boards, pay attention to do not pile up in a disorderly manner, orderly placed in the tank, cluttered piles affect the cleaning effect.
But only the use of ultrasonic cleaning is only a physical cleaning effect, in the state of water is difficult to remove the oil, embroidery, polishing wax and some other chemical components of the dirt, we need to use the heating function to match the ultrasonic cleaning, as well as the use of special cleaning agents with cleaning to achieve the purpose of cleaning. For cleaning agent, just like our life in the dishwashing needs to add the same reasoning as dishwashing detergent.

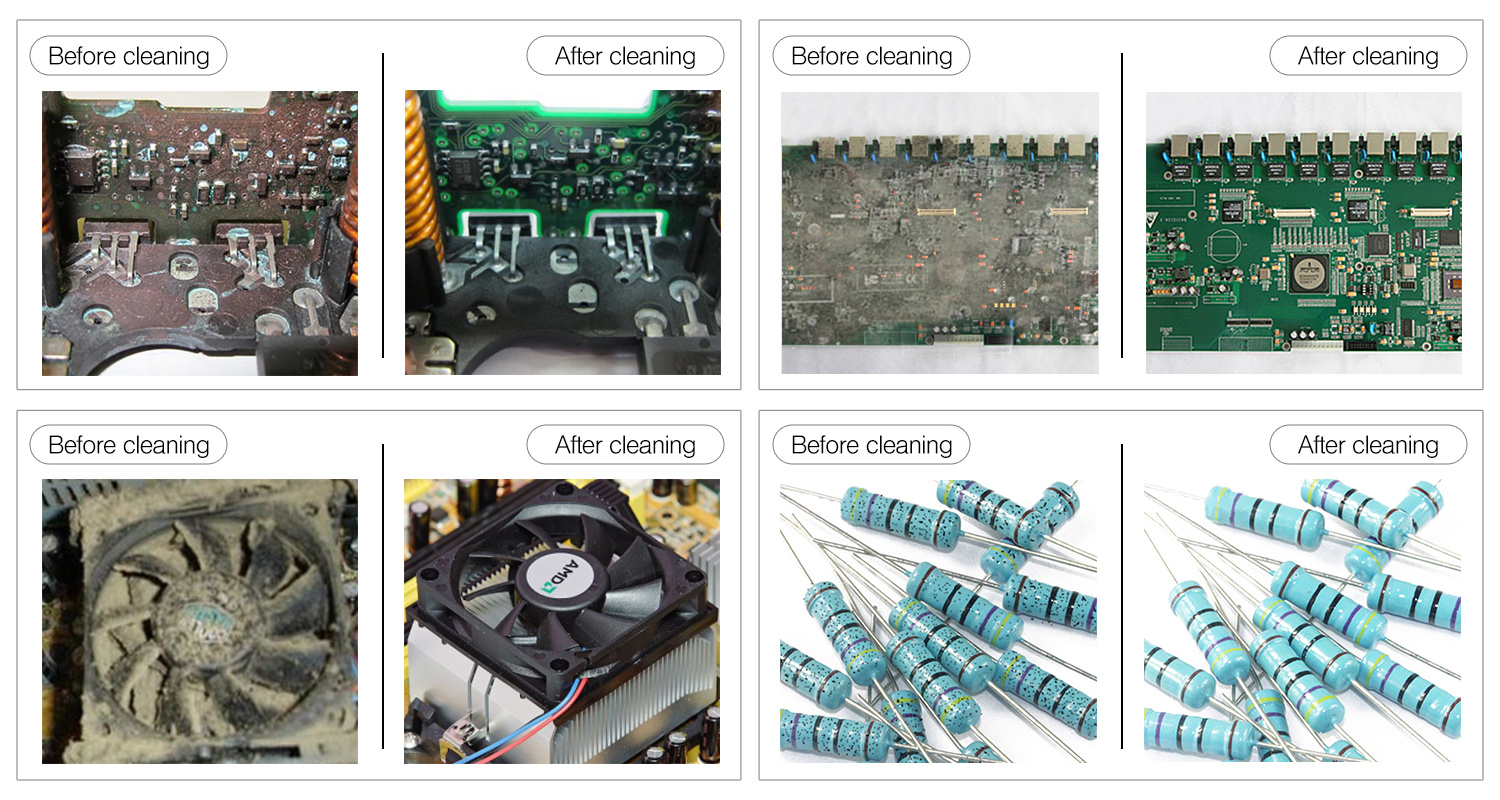

So ultrasonic cleaning machine can clean the circuit board? The correct answer is that the ultrasonic cleaning machine can clean the circuit board. If not a large number of cleaning can choose a small ultrasonic cleaning machine, cleaning can wait until the natural air dry circuit board.
The 10-15L machine is suitable for the cleaning of keyboards, electronic parts, precision electronic instruments, PCB circuit boards, mechanical parts, instrument cases and hardware plating parts, etc. GW0410 Model is recommended as the best electronics ultrasonic cleaner.

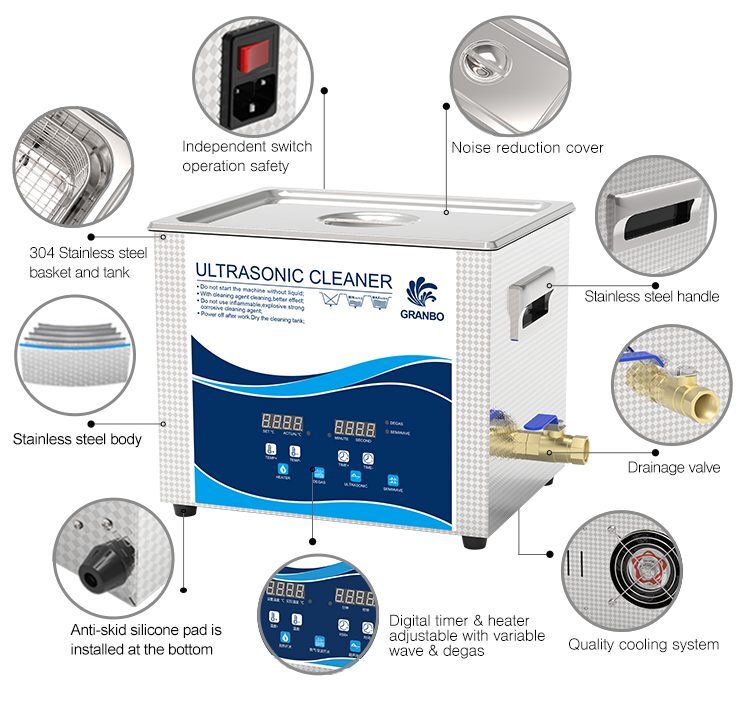

Digital Timer Heater Degas Semiwave Function Ultrasonic Cleaner
Tank size: 300×240×150 mm
Unit size: 325×265×275 mm
Ultrasonic power: 120W/240W
Power of one transducer is 60W.
Heating power: 300W
Voltage: AC 100~120V, 60Hz; AC 220~240V, 50Hz
1. Tank capacity: 10L
2. Tank material: durable resistance SUS304 stainless steel
3.Timer: digital 1~30mins adjustable
4. Heater: digital 20~80℃ adjustable
5. Ultrasonic Frequency: 40Khz and other customized options.
6. Circuit board: Industrial micro-controller chip, separately-excited trigger circuit, safe and stable for long time running.
7. Digital degas: the new mode prevents oxidation of articles and improves cleaning efficiency.
8. Semiwave: wave variable.
Electronic appliances: Switch, integrated circuit, electronic circuit board, a semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
|Industry||The cleaning products and materials||Clear dirt|
|Semi-conductor||Integrated circuit, power tube ,silicon wafer, gallium arsenide, diode, lead frame, capillary, tray, etc.||Hards, etching oil, polishing wax, dust particles, discoloration, rust and corrosion, etc,|
|Electrical & electronic machine||Tube parts/tube components, cathode ray tube, printed circuit board, quartzparts/quartz components, electronic components, telephone switching equipment, speaker components, power meter, LCD glass, liquid crystal display, magnetic core iron parts, computer floppy disk, video tape parts, magnetic heads, photo die mask, resistors, voltmeters, variable capacitors, circuit breakers, relays, connectors, variable connectors, electrolytic contactors, motor/roller/fixing plate on the pump, hoop parts, etc.||Finger print, powder, cutting oil, stamping oil, iron filings, polish-ing materials, walnut powder, polishing wax, resin, dust, etc.|
