Your Best Partner Of Surgical Instruments

Granbosonic Dental Ultrasonic Cleaner

dental equipment ultrasonic cleaner

       Dental clinic using dental medical devices and surgical tools can rely on ultrasonic cleaning technology to achieve high-level disinfection and decontamination more thoroughly, safely, and efficiently.

       Ultrasonic waves effectively clean medical and dental instruments and surgical devices with hard-to-reach internal passages, heavily soiled external surfaces, and intricate tooling prior to sterilization. Ultrasonic cleaning saves time, is safe and thorough, and extends the longevity of expensive equipment without using abrasives or harsh chemicals that might scratch or undermine delicate and highly-finished objects.

       Ultrasonic cleaner for lab dental medical is mainly used in all kinds of laboratory instruments, containers, oral liquids, glass and metal containers for food, dental instrument cleaning and other sections of medical institutions such as operating rooms, endoscopy consultation rooms, laboratories, supply rooms and dental sterilization centers.

         Dental procedures generally use dental forceps, sons, scalpels, dental drills, etc. The oral cavity has a great impact on human health. People are very cautious about what enters the mouth, fearing that germs will enter the body from the mouth and cause illness.

        Hospitals must be responsible for the health of patients, so they attach great importance to the cleaning and disinfection of dental instruments.

The Principle Of Ultrasonic Cleaning
      Dental ultrasonic cleaning machine is the use of ultrasonic cavitation in the liquid, acceleration and direct flow into the liquid and the role of direct and indirect action of the dirt, so that the dirt layer is dispersed, emulsified, stripped and achieve the purpose of cleaning. Ultrasonic cleaning can be in addition to dirt, dust, all kinds of grease, by the test, ultrasonic cleaning of E. coli and staphylococcus, etc. has a very good sterilization effect, sterilization rate of 99.6%.

Granbosonic Dental Ultrasonic Cleaner 3

When Using Dental Ultrasonic Cleaner

      It can maximize the protection of the medical equipment being cleaned from damage, can thoroughly clean the surgical machinery and surgical accessories of various stains, excluding the problem of incomplete manual cleaning, while protecting staff from contamination and infection, the cleaning of deep holes, blind holes, concave and convex grooves of dental medical equipment is the most ideal equipment.

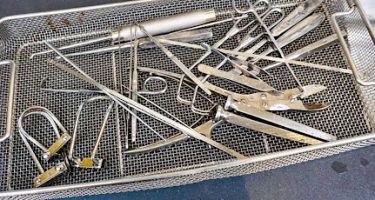

Granbosonic Dental Ultrasonic Cleaner 2

Medical Instrument Application:

Cleaning and disinfection of medical equipment such as surgical and dental equipment.

The cleaning products and materials: medical instrument, including denture, medical and dental devices, irrigation ports, all types of, spay tools, retractors, forceps, clamps and shields, scalpels and scissors, sterilization trays, suction tubes, etc.

Granbosonic Dental Ultrasonic Cleaner 4

Safely Removing Dirt

Iron filings, polishing powder, oil, stamping oil, dirt, etc. biofilms, biologic buildup, scaly deposits, organic matter, microscopic bubbles, biological contaminants, microorganisms, infectious substances, dust particles, etc.

What it cleans: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscopes, directional mirrors, artificial organs.

GW0410 Well-Suited With Specification


Brand Name: Granbosonic

Model Number: GW0410

Cleaning Appliance Type: For Dental

Capacity: 10L

Tank Size: 300X240X150mm

Ultrasonic Power: 120/240W adjustable

Transducer Quantity: 4 pcs

Heating power: 300W

Timer: digital 1~30mins adjustable

Heater: digital 20~80℃ adjustable

Ultrasonic Frequency: 40Khz and other customized options.

Material: SUS304 Stainless steel tank and basket has resistance to wear and long work life.

Color: White and blue

Semiwave function causes variable wave.

Below, we’ve outlined some best practices to follow when cleaning your dental instruments. Follow them closely to minimize the risk of infection transmission and ensure the longevity of your instruments.

  1. Ensure that no foreign objects fall to the bottom of the ultrasonic cleaning machine cavity, if any must be removed.
  2. Configure the cleaning solution: add water and cleaning agent in proportion to the cleaning tank.
  3. Turn on the power switch, the machine for self-test.
  4. Open the degas switch to exclude gas.
  5. Set the solution temperature, heating cleaning solution, heating set temperature can not exceed 45 ℃.
  6. After flowing underwater preliminary rinse instruments, the instruments into the ultrasonic cleaning machine cleaning mesh basket, must use the cleaning mesh basket loading, placed directly in the bottom of the ultrasonic cleaning machine cavity cleaning. Instruments must be fully open, detachable instruments to separate the components: suction tube and other slender hollow instruments openings placed at an angle downward to ensure that the cavity is filled with solution, the cleaning solution level soaked through the instrument 2 to 4cm.
  7. Cover the lid of the ultrasonic cleaning machine, set the cleaning time, and start ultrasonic cleaning. Ultrasonic cleaning time in 3 ~ 5min, not more than 10min.
  8. After ultrasonic cleaning of the instrument to continue the subsequent cleaning, rinsing, final unrinsed and disinfection treatment. Ultrasonic cleaning is completed after the discharge of the ultrasonic cleaning machine in the liquid.
granbo ultrasonic Dental Cleaning effect

6 Critical steps for cleaning and protecting your dental instruments

Cleaning solution: use tap water, industrial alcohol or special solvent for higher cleaning demand.

Add appropriate warm boiled water and a little salt (concentration: about 0.9% NaCl) into the tank. Start the cleanser. The best clean time is 600s (300s/time, cleanse twice).

In general, however, disassembling instruments will help cavitation reach more surface areas. Fine mesh baskets are available to hold small parts.

Protect Yourself

Pre-Soak Your Instruments

Use the Ultrasonic Cleaner

Dry Your Instruments

Package the Instruments

Load the Instruments Carefully
